gSKIN®-XO Heat Flux Sensor

Our gSKIN®-XO heat flux measurement sensor is best for determining heat flux from air into materials, or vice versa.

With sensing dimensions of 30.0 x 30.0 x 3.3 mm, gSKIN®-XO offers ultra-high resolution for experimental heat flux measurements. It supports thermal optimization, industrial monitoring, and heat flux sensor R&D.

 gSKIN®-XO is a highly robust sensor that coheres to ISO 8301. It suits many research uses, including thermal material testing and building applications.

Product Details

  • Ultra-high resolution of thermal energies and temperature differences.

  • Robust sensor.

  • All sensors with conductive heat flux calibration support ISO 8301 standards.

  • Only available to purchase with DLOG Connector. Models with connector purchase are compatible with all gSKIN® DLOG Data Loggers.

    • Please contact us if you would like to check if your current datalogger is compatible with our heat flux sensors.



With your purchase you will receive:

  • 1x gSKIN® -XO sensor
  • 1x connector
  • Calibration Certificate
  • Datalogger Software (if gSKIN® DLOG purchased additionally)

To see all product specifications, please visit our gSKIN® datasheet within our downloads section.

  • Sensing dimensions [mm]: 30.0 x 30.0 x 3.3
  • Max Heat Flux Measurement Range [kW/m2]: 9
  • Sensitivity @22.5 [°C]: 14.0 (typical), 7.0 (min)
  • Response Time [s]: < 10 seconds
  • Operating Temperature Range Max/Min [°C]: -15 to +85
  • Calibration accuracy: ±3%
  • Standard Cable length* [cm]: 100

  • With connector: CHF 729.00

 If you are want to purchase in large quantities, please contact us via our contact us form.

The cost of our gSKIN® DLOG datalogger is additional to the sensor purchase. Please visit our shop to see more information on our gSKIN® DLOG datalogger.

532-png-1




Key Downloads



By downloading our gSKIN® Datasheet below, you can access key product specifications.

  • This includes dimensions, cable length, sensitivity, response time, operating temperature ranges, and more information.

By downloading our gSKIN® Product Manual, you will access key product information.

  • This includes a short user guide, installation and maintenance of the sensors, sensor read out processes, and more.

gSKIN® Datasheet
gSKIN® Product Manual

Relevant gSKIN®-XO Applications

Thermal Material Characterization

Explore real-life applications of our gSKIN®-XO sensor, including the use of a numerical model to reduce the measurement duration of U-Value, as well as the impact of solid walls properties in coastal situations.

Laser and Energy Applications

Explore real-life applications of our gSKIN®-XO on heating and ventilation of an adaptive double-skin façade.

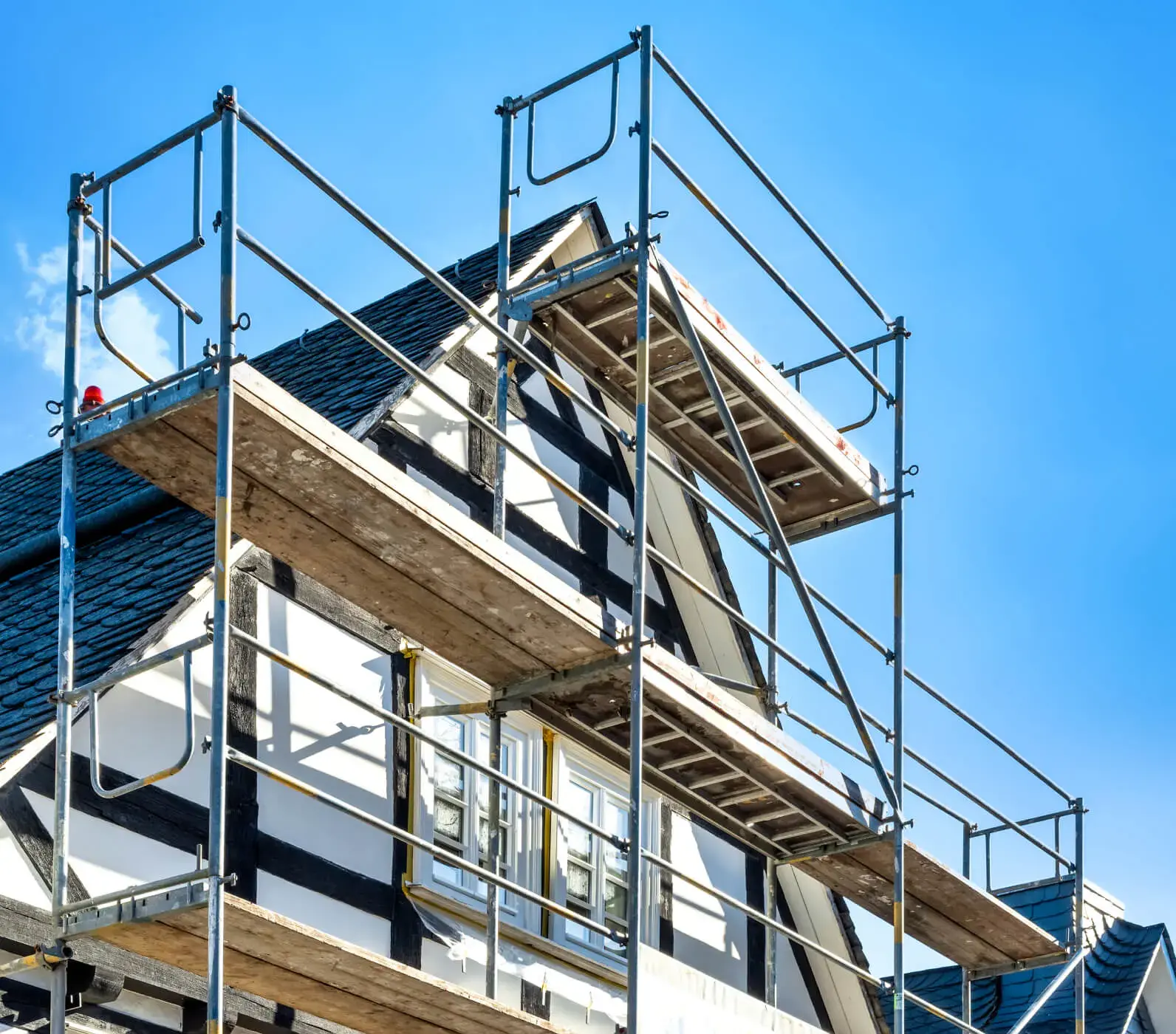

Building Purposes

Our gSKIN® -XO sensor is largely used for building purposes, due to its robustness. This includes for example: In-situ building monitoring, U-Value determination, environmental monitoring.

giorgio-trovato-OjZNIzOcHNU-unsplash
anfal-shamsudeen-wVIX3B6YCcM-unsplash
greenteg_uval_gt_building_u_value_measurement_control_bf8a8c2ed4
